Capabilities Profile

Fabricators Cutting Solutions

Carbide tip cold saws and Bystronic tube laser cutting — engineered for the tolerances and schedules of modern fabricators builds.

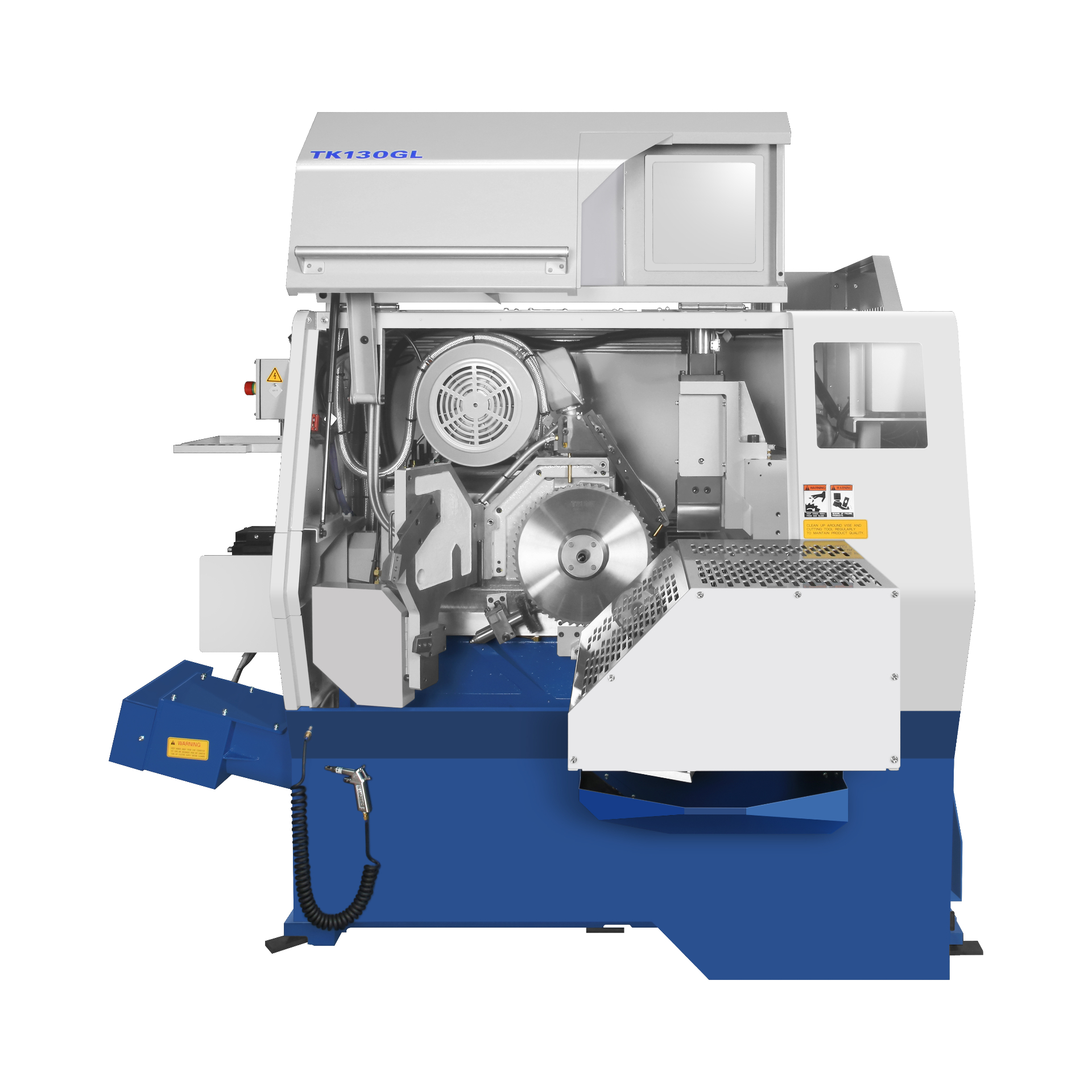

TSUNE TK130GL carbide-tipped cold saw with door open showing blade and cutting head — TSUNE TK130GL — cutting head

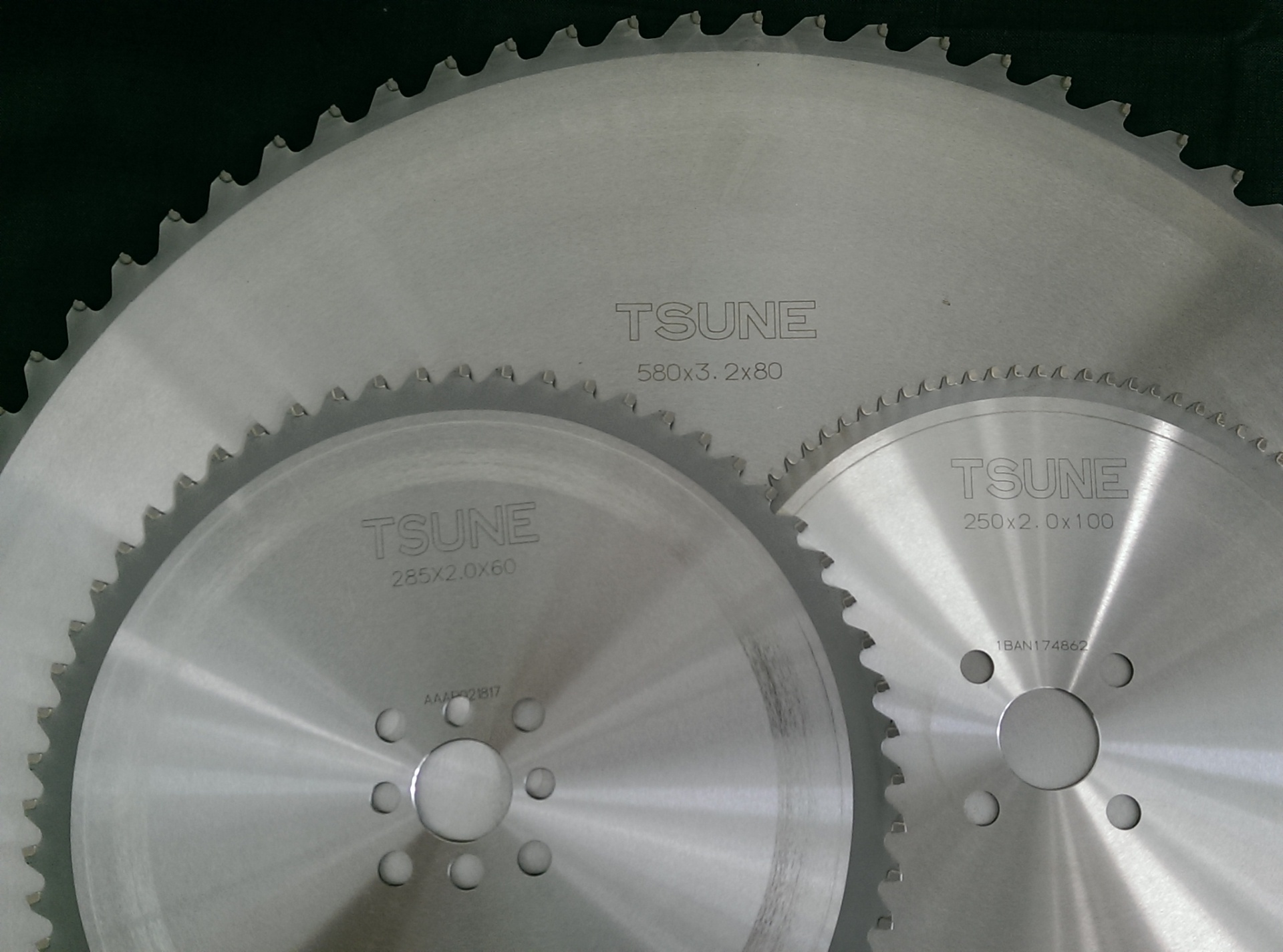

TSUNE carbide-tipped saw blades in multiple diameters — Carbide-tipped blade inventory

Cold Saws

Carbide Tip Cold Saws

Precision Cutting for Structural & Mechanical Tubing

Our carbide-tipped cold saw operation delivers tight tolerances and clean, machined finishes for job shop work — burr-free, square cuts ready for welding or direct assembly.

Equipment Summary

Straight-Cut Cold Saws5" OD Maximum Capacity
Miter-Capable Cold Saw5" OD Maximum Capacity · Miter Cuts

Key Features

Carbide-tipped blades for clean, cold cuts
±0.005" length tolerance
Machined surface finish
Angle cuts available
5.00" OD maximum diameter

Fabricators Application

Ideal for fabricators framing, supports, and mechanical tubing. Tight tolerances ensure clean fit-up and reduce field rework.

Tube Laser

Bystronic Tube Laser

High-Speed Laser Cutting for Round, Square & Rectangular Profiles

Our Bystronic tube laser handles a wide range of structural profiles with precision and speed — improving consistency across fabricators programs.

Profile Capabilities

Round Tube0.375" to 5.000" OD
Rectangular Tube0.375" to 5.000"
Square Tube0.375" to 5.125"

Material & Size Limits

Cut Tolerance±0.005"
Steel Wall Thickness0.500" Maximum
Stainless Steel Wall Thickness0.250" Maximum
Maximum Incoming Length252" (21 feet)

Fabricators Application

Laser-cut tube for fabricators framing, skids, and enclosures. Complex notching and hole patterns in a single pass with no tooling charges.
